Small range TJH-3, Small size, easy to install. The comprehensive precision of the load cell is high.It can choose weighing module or built-in amplifier, which can be applied to a variety of weighing occasions.

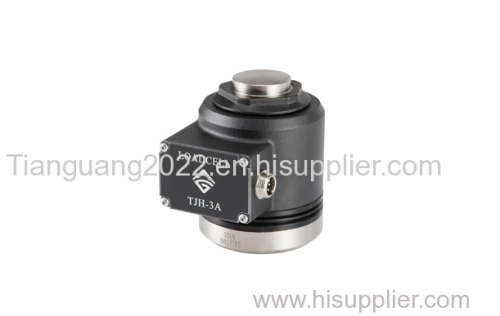

Specifications of TJH-3A Column Type Load Cell

Technical Parameter

Rated Load 2~100 kN

Comprehensive Precision 0.05% FS

Sensitivity 2.0 mV/V

Creep ±0.05% FS/30min

Zero Output ±1% FS

Temperature Effect On Zero ±0.05% FS/10℃

Temperature Effect On Output ±0.05% FS/10℃

Operating Temperature Range -20~+65 ℃

Input Resistance 380±10 Ω

Output Resistance 350± 3 Ω

Insulation Resistance ＞5000 MΩ

Safe Load Limit 150% FS

Bridge Voltage Reference 10V DC

Material Alloy Steel

Load Cell Mode Of Connection Input+: Red

Input-: Black

Output+: Green

Output-: White
